Image Analyst MKII provides complex image processing tasks in a biologist-friendly manner.

Fluorescence microscopy image analysis
automation - time series - physiology

TMRM FLIPR technique - mitochondrial assay bis-oxonol and tetramethylrhodamine methyl ester (TMRM) Mitochondrial membrane potential assay

Absolute and Unbiased Mitochondrial Membrane Potential Assay

   Commonly used mitochondrial membrane potential (ΔψM) assays often lead to data misinterpretation. This is because all of the used probes are influenced by multiple properties of cells other than ΔψM.

  Our technology is based on biophysical modeling of ΔψM probe behavior to back-calculate potentials from time courses of fluorescence intensities. This enables absolute millivolts readout, and an unbiased comparison of different samples, accounting for geometric, binding and ΔψP effects.

The Theory

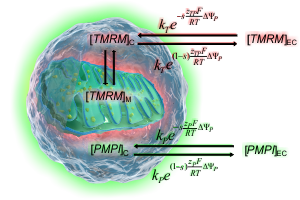

Theory of the TMRM/FLIPR technique

How absolute millivolts are calculated

See how effects of ΔψP, cell and mitochondrial geometry and fluorescence background accounted for to calculate mV values.


In Practice

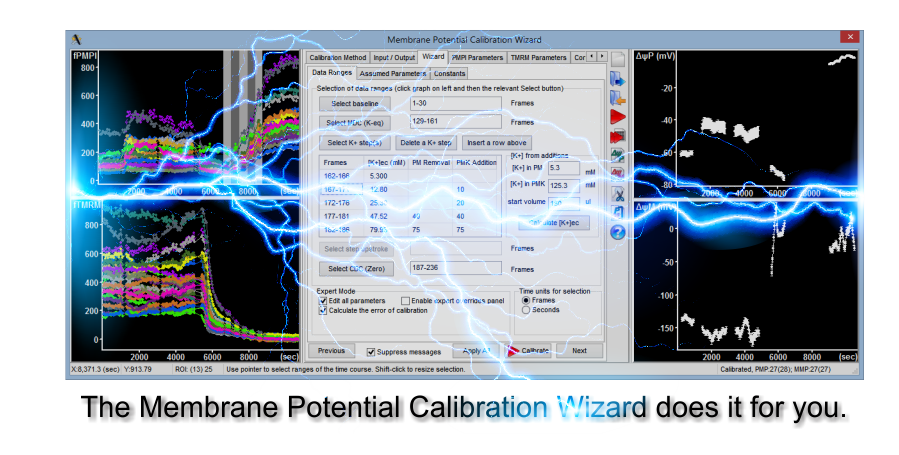

Membrane Potential Calibration Wizard

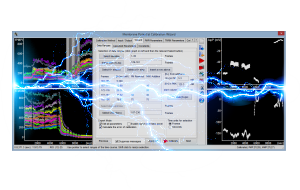

The Membrane Potential Calibration Wizard

This interactive dialog works hand in hand with the provided protocol to calibrate potentials without theoretical knowledge.


See the technology in publications

  • Published in-depth protocol (61)
  • In human stem cells (14)
  • In rat neurons (17)
  • In human and rodent β-cells (26,31,40)
  • In osteoblasts (40)
  • In MCF7 (49)
  • In hepatocellular carcinoma (51)
  • In H29C, BJ1, HepG2 cells, primary cardiomyocytes (61)

Mitochondrial Membrane Potential Assay Protocol

Lerner and Gerencser Mitochondrial Membrane Potential


Protocol explaining experimental design, microscopy setup and image analysis

Full text
